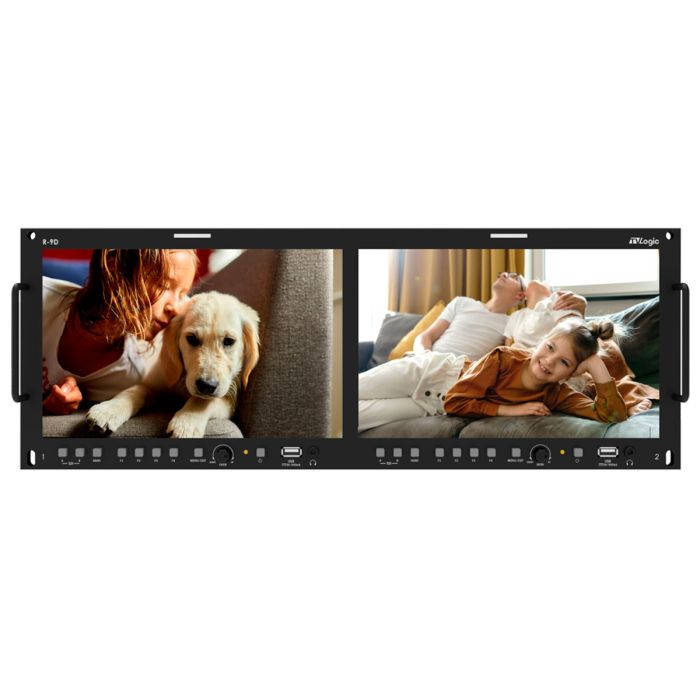

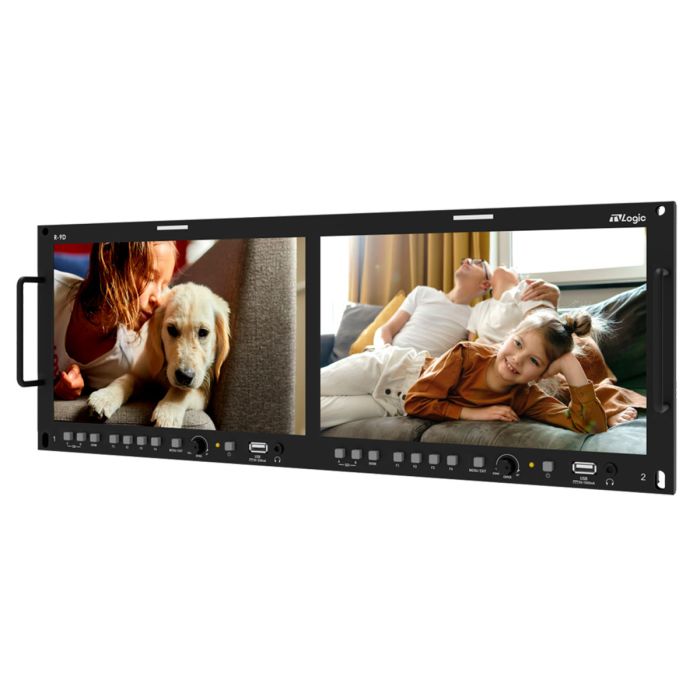

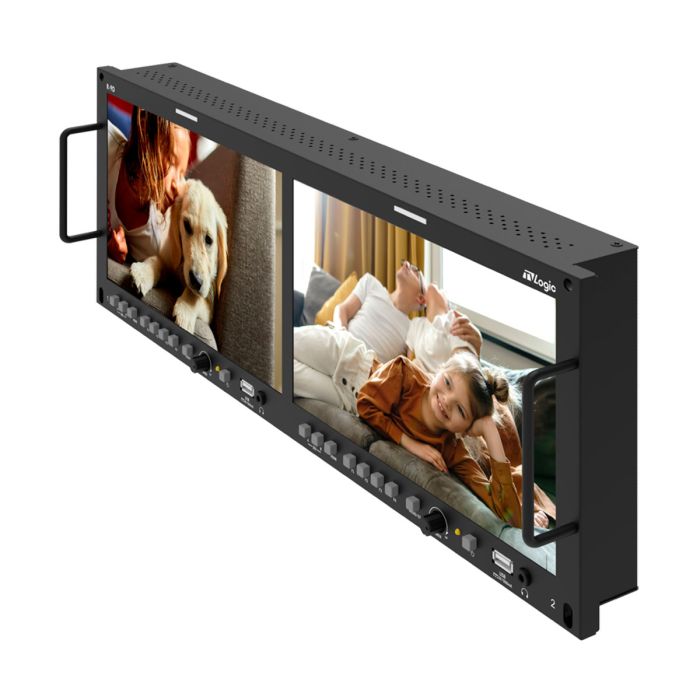

TV Logic R-9D: Dual 10.1” 12G Ready 4RU Rack-Mount Monitor

• 2 × 10” Full HD LCD Screen
• 12G/6G/3G-SDI Input & Output
• HDR (PQ, HLG, S-Log3)
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Marker
• Dynamic UMD
• Timecode Display
• Luma(Y’) Zone Check
• Focus Assist
• 1:1 Scan / Zoom
• Blue/Mono Only
• H/V Delay
• Tally
• Remote Control by Ethernet

LCD

• Size: 10.1"
• Resolution: 1920x 1200 (16:10)
• Pixel Pitch: 0.1128(H) × 0.1128(V) mm
• Color Depth: 16.7M Colors (8 bit)
• Viewing Angle (typ.): 170°(H) / 170°V)
• Luminance of white: 800 cd/m2 (Center)
• Contrast Ratio: 1000:1
• Display Area: 216.58(H) x 135.36(V) mm

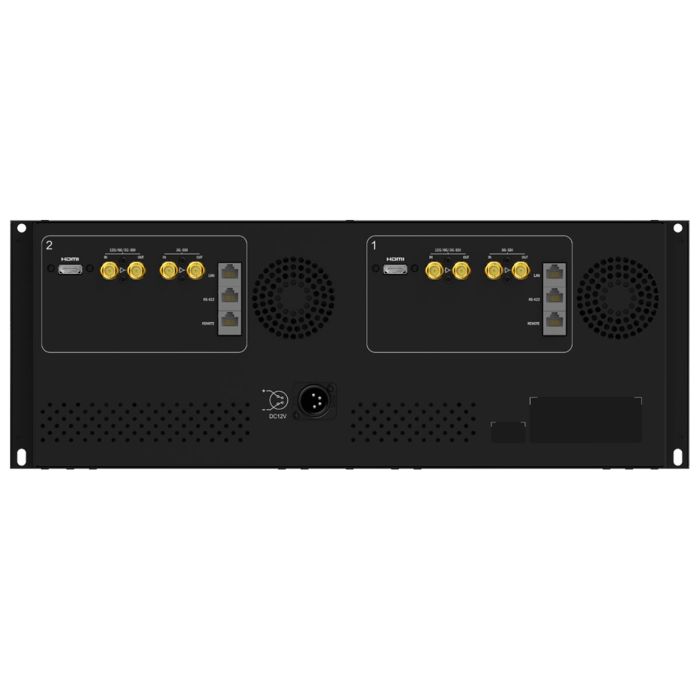

Input Connector

• 1 X HDMI: HDMI Input
• 1 X BNC: 3G-SDI
• 1 X BNC: 12G-SDI
• 2 x RJ45: RS-422, REMOTE

Output

• 1 x BNC: 12G-SDI OUT (Passive Through Out)
• 1 x BNC: 3G-SDI OUT (Passive Through Out)
• 1 x RJ45: RS-422

Input Signal

• 12G-SDI: 11.88Gb/s
• 6G-SDI: 5.94Gb/s
• 3G-SDI: 2.970Gbps
• HD-SDI: 1.485Gbps
• HDMI: 1080p(60/59.94/50/30/25/24/23.98)/1080i(60/59.94/50/720p(60/50)/480i (60)/480p(60)/576(50)/576p(50)

SDI Input Signal Formats

• SMPTE ST 2082: 2160p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.975F/25sF/24sF/23.985F)
  2160i (60/59.94/50)
• SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98SF)
  1080i (60/59.94/50)
• SMPTE-274M: 1080i (60/59.94/50)
  1080p (30/29.97/25/24/24SF/23.98/23.985F)
• SMPTE-296M: 720p(60/59.94.50/30/29.97/25/24/23.98)
• SMPTE-125M: 480i (59.94)
• ITU-R BT.656: 576i (50)

• Audio In: Embedded Audio
• Audio Out: Speaker
• Power: DC 12V/3.4A
• Power Consumption (Approx.): 38 Watts
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Main Body Dimensions (mm/inch): 481.0 x 175.8 x 60.5(mm) / 18.93 x 6.92 x 2.38(inch)
• Main Body Dimensions with RMK (mm/inch): 481.0 x 175.8 x 88.0(mm) / 18.93 x 6.92 x 3.46(inch)
• Box Dimensions: 555.0 x 230.0 x 165.0(mm) / 21.85 x9.06 x 6.50 (inch)
• Weight: 2.95Kg / 6.50lbs
• Basic Accessories: AC Power Cord, DC Power Adapter, Rack Mount Kit(Body)
