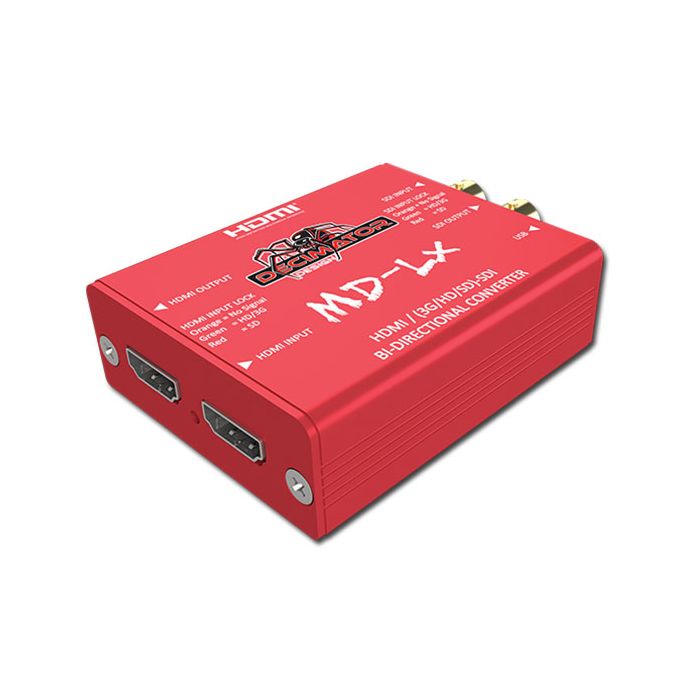

Decimator Design MD-LX HDMI/SDI Converter
HDMI/SDI Bi-Directional Converter for 3G, HD & SD
MPN: DD-LX SKU: DD-LX
$88.33
The MD-LX from Decimator Design is their new, miniature and low-power HDMI/SDI bi-directional converter. The Lite version of the popular MD-HX.
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
No Stock until Late Q4 or early Q1 2027
The MD-LX from Decimator Design is their new, miniature and low-power HDMI/SDI bi-directional converter. The Lite version of the popular MD-HX.
The MD-LX is controlled either via USB on a Mac/Windows app. Warranty for all Decimator Design products is 3 years.
- Pocket Sized at 2.4"x2.9"x0.9"
- 1x SDI Input, 1x HDMI Input and 1x SDI output, 1x HDMI output
- Supports 3G level A and B, allowing for conversion between both
- USB provides power, control and firmware upgrades
- Low USB power
Features the following modes:
- Auto Select (Active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI)
- HDMI IN to SDI OUT and SDI IN to HDMI OUT
- SDI IN to HDMI and SDI OUT
- HDMI IN to HDMI and SDI OUT
SDI Formats
- 3G-A or 3G-B:SMPTE [email protected] and 2.967Gb/s: 1080p@60/59.94/50Hz
- HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s:
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
- SD:SMPTE 259M@270Mb/s:
- 625i50 (PAL)
- 525i59.94 (NTSC)
HDMI Formats
- 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
- 1080i@60/59.94/50Hz
- 720p@60/59.94/50/30/29.97/25
- 625i50 (PAL)
- 525i59.94 (NTSC)
Inputs
- 1 x HDMI Type A
- 1 x (3G/HD/SD)-SDI
- Micro USB for power, control and firmware updates
Outputs
- 1 x HDMI Type A
- 1 x (3G/HD/SD)-SDI
Power
- USB Power +4.4V to +5.25V DC
- Uses under 2.5 Watts
Dimensions
- 60mm x 73.7mm x 23mm (2.4” x 2.9” x 0.9”)
- Decimator Design MD-LX
- Power Supply
- USB Cable
